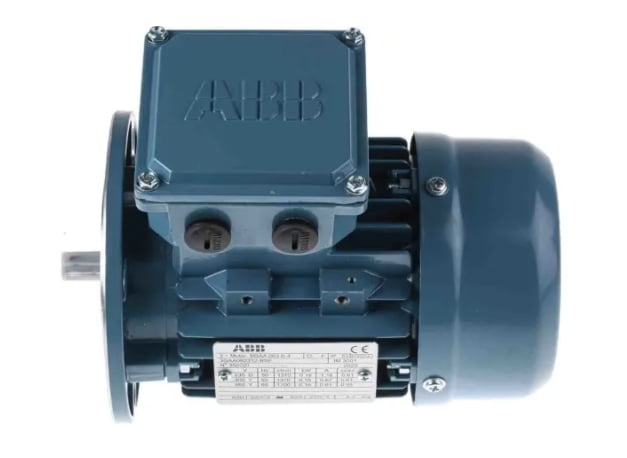

ABB, M3AA, Reversible Induction AC Motor
Tags:
2 & 4 Pole IE2 Flange Mounted Motors
Three phase motors ideal for a wide variety of applications including pumps, fans and process machinery drives.
THB0.00
Choose Quantity
Product Details
Product Details :
• High efficiency motors to meet IE2 regulations
• Comparable to old EFF regulations
• Metric frame sizes to Cenelec standards
• Class F insulation with class B temperature rise
• Top mounted terminal box with metric/Pg type knockouts
• Energy efficient low noise design
• All motors have keyways and fitted keys
• Corrosion resistant, low copper aluminium alloy
• Suitable for DOL starting or inverter drive use
Specifications :
• Power Rating : 0.18 kW
• Efficiency Class : IE2
• AC Motor Type : Induction
• Supply Voltage : 415 V ac
• Phase : 3
• Output Speed : 1380 rpm @ 380 V
• Number of Poles : 4
• Mounting Type : Flange Mount
• Length : 214mm
• Depth : 140mm
• Series : M3AA
• Maximum Output Torque : 1.25 Nm
• Rotation : Reversible
