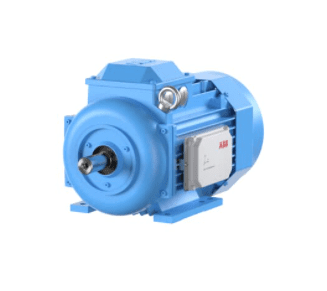

ABB, M3BP 90 SLA 2 3GBP091010-ASL ,ABB Cast iron motor
Tags:
• General Information
• Product ID :3GBP091010-ASL
• ABB Type Designation :M3BP 90SLA 2
THB0.00
Choose Quantity
Product Details
• ABB Type Designation : M3BP 90SLA 2
• Altitude : 1000 m
• Ambient Temperature : 40 °C
• Bearing : 6205-2Z/C3
• Bearing NDE : 6204-2Z/C3
• Country of Origin : China (CN), Finland (FI)
• Customs Tariff Number : 85015220
• Direction of Rotation : Both sides
• Gross Weight : 30 kg
• IC Class : IC411
• IE Class Data (50 Hz) :IE Class IE3
: Full Load (100%) : 84.2 %
: Partial Load (75%) 84.5 %
: Partial Load (50%) 83.1 %
• IE Class Data (60 Hz) :IE Class IE2
: Full Load (100%) 84.0 %
: Partial Load (75%) 83.5 %
: Partial Load (50%) 81.1 %
• IM Class : IMB3 IM1001
• IP Class : IP55
• Insulation Class : ICLF
• Invoice Description : M3BP 90SLA 2
• Made To Order : No
• Minimum Order Quantity : 1 piece
• Number of Poles (High) : 2
• Order Multiple : 1 piece
• Package Level 1 Units : 0 carton
• Product Name : 3-Phase squirrel cage motor
• Product Net Weight : 27 kg
• Product Type : 5BP3 M3BP CI
• Quote Only : No
• Selling Unit of Measure : piece
• Stocked At (Warehouses) : Central Stock Europe
: Central Stock Spain
: CSCNM
• Terminator Box Location : D-End top
• Two Speed Motor : No
• Type of Duty : S1
• UNSPSC : 26101100
• Voltage Code : S
