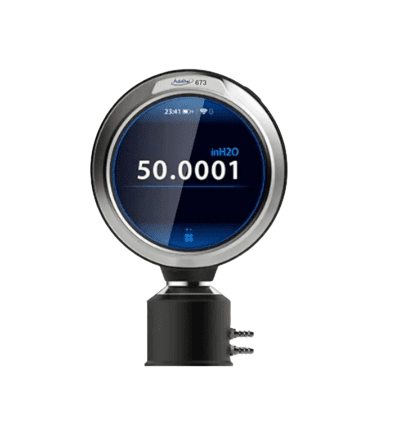

Additel, 673, Advanced Digital Pressure Calibrators
Choose Quantity
- Pressure ranges up to 60,000 psi (4,200 bar)
- 0.02%, 0.05% FS or 0.1% RD Accuracy
- Color Touchscreen Display
- Every model measures Gauge or Absolute Pressure
- Built-in Barometer
- Intuitive Smartphone Like Interface
- Bluetooth and USB Communication
- Wi-Fi (optional)
- Measure mA or V, and with 24V loop power
- Full HART Field Communicator (Optional)
- Data logging
- Communicates with Additel's Link Mobile App
Specifications | |
Accuracy | ADT673-02: 0.02% of full spanADT673-05: 0.05% of full span 673-RD: 0% to 20% of Range: 0.02% of full span, 20% to 110% of Range: 0.1% of reading, Vacuum: 0.25% of full span[1][2] |
Barometric Accuracy (built-in barometer) | 55Pa |
Gauge Types | Gauge pressure, compound pressure, absolute pressure, differential pressure |
Display | Color Touchscreen (capacitive) Screen protector: tempered glass film (replaceable) Display rate: 3 readings per second (Default setting). Adjustable from 10 readings per second to 1 reading every 20 seconds Resolution: 4,5 or 6 digits (user selectable) |
Pressure Units | Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O@4°C mmH2O@4°C, inHg@0°C, mmHg@0°C and 5 customizable units |
Environmental | Compensated Temperature: 14°F to 122°F (-10°C to 50°C) Operating Temperature: 14°F to 122°F (-10°C to 50°C) Storage Temperature: -4°F to 158°F (-20°C to 70°C) Humidity: 0 - 95%, Non-condensing |
Pressure Port | ≤15,000 psi: 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20×1.5 male >15,000 psi: 1/4HP female or 1/4HP male, *1/4HP female: Autoclave F-250-C, 9/16" - 18 UNF-2B, *1/4HP male: Autoclave M-250-C, 9/16" - 18 UNF-2A Differential Pressure: Barb fitting Other connections available per request |
Over Pressure Warning | 1.2 |
Power | Battery: Rechargeable Li-ion battery Li-Battery life: 16 hours typical Recharge time: 4 hours typical External power: 110V/220V power adapter (5 VDC) |
Enclosure | Case material: 304 SS Wetted parts: 316 SS [3] Dimensions: 4.65" (118mm) width X 1.77" (42mm) depth 6.89" (175mm) height Weight: 1.58 lbs. (0.715 kg) Protection Level: IP67 |
Electrical Measurement Accuracy (23 ± 15°C) | Voltage DC: ±30.0000 V, ± (0.01%RD + 1.5 mV) Current DC: ±30.0000 mA, ± (0.01%RD + 1.5 μA) DC 24 V: 24 V ± 1 V, MAX:30 mA Switch[4] : Status OPEN/CLOSED, support for mechanical switches and NPN/PNP digital switches |
Data Logging | Data storage: 8GB (100M+ records) Mode: manual and automatic Interval-record: user selectable from 0.1 to 9999.9 second intervals |
Compliance | Protection Level: IP67 Vibration: 5 g (10-500 Hz) Shock Resistance: 8 g/11 ms CE |
Communication | USB Type-C and Bluetooth included, RS232 or Wi-Fi (optional) |
Warranty | 1 year |
