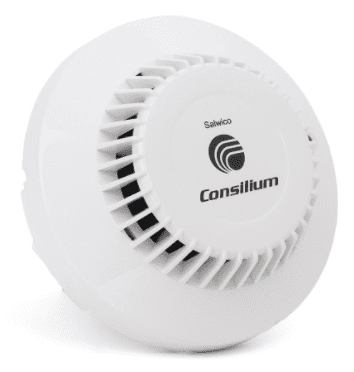

DOS3, SMOKE DETECTOR N1115, Consilium Salwico

• The Salwico DOS-3 N1115 is a low profile, conventional, optical smoke detector that is designed to combine optimal response to smoke with a strong immunity to false and unwanted alarms.

• The Sensor in the DOS3 has an alarm verification function which needs to successive pulses before an alarm is given.

• The DOS3 N1115 provides a strong immunity air velocities, contamination and EMC. A special protective mesh ensures that smoke can enter the detector easily, while accessibility to insects and airborne contaminants is eliminated.

• The DOS3 detector can be mounted on bases for use in both dry spaces and in harsh environments.

• The DOS3 is compatible with the OD-5 smoke detector.

• Weight  :  0.2 kg

• Addressable/Conventional :  Conventional

• Operating Principle    :  Conventional, optical, light scattering type, infrared

• Nominal Voltage     :  24VDC

• Working Voltage   :  17-30VDC

• Alarm Resistance   :  430?

• Temperature Range  :  -25°C to +70°C

• Relative Humidity  :  0 to 95% RH

• IP Rating                :  IP42

• Weight                : ~95 g

• Color                  : White
