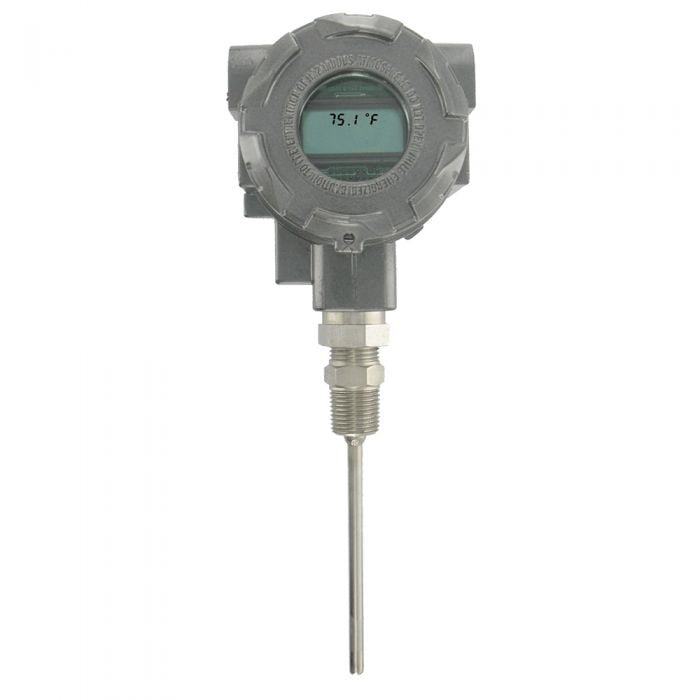

Dwyer Instruments, TTE-104-W, Explosion-proof RTD temp transmitter, 4" probe
Tags:
MODEL: TTE-104-W
MFG: DWYER
THB0.00
Choose Quantity
Product Details
• Temperature Sensor: Pt1000, 0.00385 DIN.
• Output Temperature Ranges: User selectable – any range between -30 to 250°F with a minimum span of 40°F.
• Temperature Limits: Ambient: 0 to 158°F (-18 to 70°C); Process: -30 to 250°F (-34.4 to 121.1°C).
• Accuracy: Transmitter ±0.1% FS; Probe ±0.3% FS.
• Thermal Drift Effects: ±0.02%/°C max.
• Response Time: 250 ms.
• Wetted Materials: 316 SS.
• Process Connection: 1/2? male NPT.
• Conduit Connection: 1/2? female NPT.
• Probe Length: 4"
• Pressure Limits: 2000 psi (137.9 bar).
• Power Requirements: 10 to 35 VDC.
• Output Signal: 4 to 20 mA (two wire loop powered).
• Optional Display: No LCD.
• Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I,
• Groups B, C, D; Class II, Groups E, F, G; Class III.
• Weight: 2 lb 8 oz (1134 g).
• Agency Approvals: CE, FM.
• Manufacture: Dwyer Instruments
• Part. No : TTE-104-W
