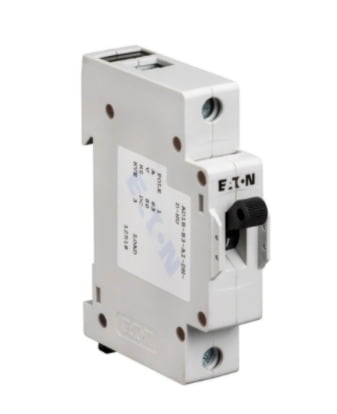

Eaton, Heinemann ADR, Circuit Breaker type 1-4 Poles
Tags:
A new standard for DIN rail mounting hydraulic-magnetic circuit breakers. The Heinemann ADR series is the evident choice for manufacturer willing to integrate in their design the hydraulic-magnetic technology without additional redesign effort. In addition to all advantages of hydraulic-magnetic circuit breakers such as precise, stable and reliable protection against overload or short-circuits.
THB0.00
Choose Quantity
Product Details
Features :
• Hydraulic-magnetic overcurrent and fast short circuit protections.
• Different tripping curves
• In-Rush capabilities (8x - 15x - 22xIn) in standard
• Changeover (SPDT) auxiliary contact (C-NO-NC) imbedded on the same pole as the circuit breaker
• Different configurations and types of auxiliary contacts connections
• Mid-Trip options : handle falls to horizontal position on electrical tripping
• Trip-free design. Breaker cannot be defeated by holding the handle in the ON position.
• Power to the circuit breakers can be fed from the line or load side.
• Easy installation on DIN 35mm rail according to DIN 50022 (IEC/EN60715)
• Module width of only 17.5 mm (per pole).
• Captive screws cannot be lost
• Captive terminals
• Optional handle locking system for Logout/Tagout
