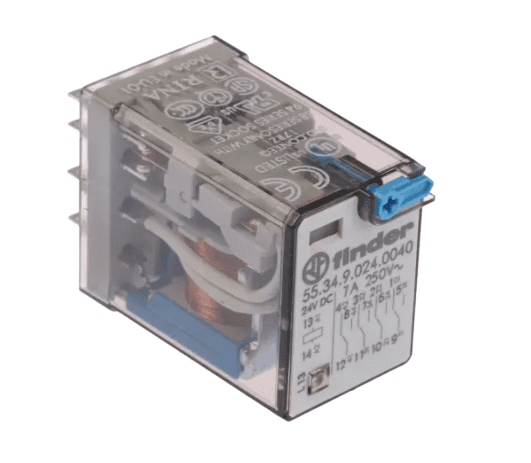

Finder, 55.34.9.024.0040, 24V dc Coil Non-Latching Relay 4PDT, 7A Switching Current
Tags:
Finder Non-Latching Relay
The Finder 55 Series 4-pole plug-in mount non-latching relay has a contact configuration of 4PDT. It is actuated with a 24VDC coil and has switching current of 7A.
THB0.00
Choose Quantity
Product Details
Features and Benefits :
• Silver-nickel cadmium-free contacts
• Coil power is 1W
• Coil resistance is 140ohm
• Lockable test button
• Mechanical flag indicator
Specifications :
• Coil Voltage: 24V dc
• Coil Power : 1W
• Coil Resistance : 600 (omega)
• Contact Configuration : 4PDT
• Mounting Type : Plug In
• Switching Current : 7A
• Terminal Type: Quick Connect
• Number of Poles : 4
• Maximum Switching Voltage AC: 400V ac
• Height: 37.2mm
• Maximum Switching Power AC: 1.75 kVA
• Length: 27.7mm
• Depth : 20.7mm
• Series: 55 Series
