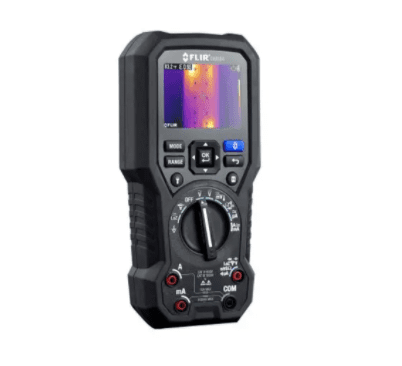

FLIR DM284 Handheld LCD Thermal Imaging Multimeter
Tags:
DM284 visually guides you to the precise location of an electrical problem, helping you pinpoint hot spots faster. The DM284 has built-in work lights and a laser pointer to help you access difficult locations that have lighting issues. Able to view thermal and electrical measurements simultaneously on wide-view display.
THB0.00
Choose Quantity
Product Details
• IGM?
• Thermal Imager
• Pinpoints problems quickly and safely with IGM
• Carry one device and always have access to thermal imaging
• Non-contact voltage measurement
• Built-in 160 x 120-resolution thermal camera sensor visually guides you to an electrical problem
• Verify electrical issues with trusted readings every time, even with complex measurements
• Thermocouple input + test probe
• Includes high-quality test probes and a Type K thermocouple input
• IP54: resistant to a majority of dust ingress and water splashes
• Purposefully designed easy-to-read big-digit screen
• Accurate, intuitive, rugged & reliable
• 3 m drop-tested and IP rated for splash and water resistance
Specifications :
• Multimeter Type : Handheld
• Absolute Maximum AC Current Measurement : 10A ac
• Absolute Maximum DC Current Measurement : 10A dc
• Absolute Maximum Resistance Measurement : 50M?
• Absolute Maximum AC Voltage Measurement : 1000V ac
• Absolute Maximum DC Voltage Measurement : 1000V dc
• Absolute Maximum Capacitance Measurement : 10mF
• Absolute Maximum Temperature Measurement : +400 °C, +752 °F
• Functions Measured : Capacitance, Continuity, Current, Flex Clamp, Frequency, Resistance, Thermal Imaging, Thermocouple, VFD, Voltage
• True RMS : Yes
• Maximum Frequency : 99.99kHz
• Display Type: LCD
• Model Number p : DM284
• Best DC Current Accuracy: ±1 %
• Best Temperature Measurement Accuracy: ±1 %
• Best AC Voltage Accuracy : 0.09 %
• Best DC Voltage Accuracy: 0.09 %
• Dimensions: 49 x 95 x 200mm
• Safety Category Level: CAT III, CAT IV
• Weight: 537g
• Battery Life: 12 (Rechargeable) h, 3 (Alkaline) h
• Maximum Operating Temperature :+150°C
• Height: 200mm
• Minimum Operating Temperature : -10°C
• Best Resistance Measurement Accuracy: 0.9 %
• Best Capacitance Measurement Accuracy: 1.9 %
• Safety Category Voltage: 600 V, 1000 V
• Battery Type: AAA
• Width: 95mm
• Length: 49mm
• Best AC Current Accuracy: ±1 %
