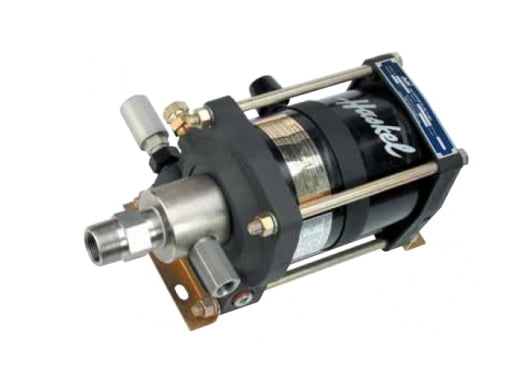

Haskel, DSF-B32, 2HP Air-Driven Liquid Pump
Tags:
The Haskel model DSF-B32 2HP air-driven liquid pump utilizes a double air head to boost liquid pressures to a maximum of 4800 PSIG.
THB0.00
Choose Quantity
Product Details
• Power : 2HP
• Air Head : double
• Max Air Pressure : 150 PSIG
• Max cycles : 80/min.
• Nominal ratio (“dash number”) : 32:1
• Actual area ratio : 34:1
• Max outlet pressure (continuous) : 4800 PSIG
• Max outlet pressure (intermittent) : 4800 PSIG
• Displacement / cycle : 2.70 cu. in.
• Max flow : 810 cu. in./min.
