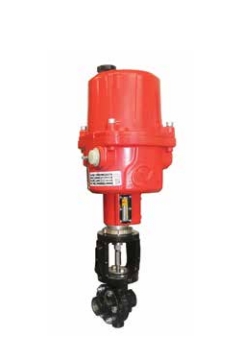

Jordan Valve, Mark 37 Series, Motor Operated, Final Control Element Valves
Tags:
The Mark 37 is a motor-operated control valve that combines a state-of-the-art electronic linear actuator with the exceptional performance of Jordan's sliding gate valve seat design. The result is a superior degree of accuracy that makes it ideal for use as the final control element in distributed process control systems. The Mark 371/372 is the high flow version and the Mark 377 is he equal percentage version.
THB0.00
Choose Quantity
Product Details
Features & Benefits
• A stroke shorter than those found in globe or plug-style valves resulting in much faster operation than other electric control valves
• Long packing and stem life, with stem packing four times deeper than stem travel
• Sliding gate seats provide straight-through flow for reduced turbulence and quiet operation
• Short stroke for faster response and accurate regulation
• Easily interchangeable Cvs
• Tight shutoff
Specification
• Sizes : 1/4" - 6" (DN8 - DN150)
• Body Material : Carbon Steel, Stainless Steel, Ductile Iron, Cast Iron, Bronze
• End Connection : Threaded, Flanged, Socket Weld, Butt-Weld
• Cv (Kv) : up to 395 (up to 340)
• Seat Material : Jorcote
• Command Signals : Current or voltage command, on/off
