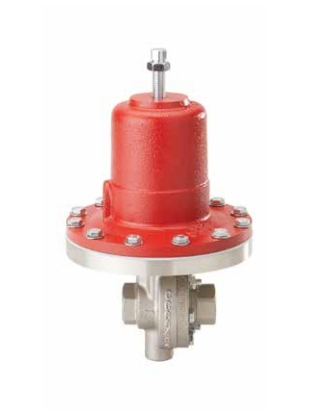

Jordan Valve, Mark 61 Series, Pressure Reducing Regulators, High Sensitivity
Tags:
The Mark 61 Series handles a broad range of applications including steam, water, oil, gas, air and chemicals. It is a self-operating pressure regulator used to regulate the downstream pressure to a predetermined setpoint. The sliding gate seats offer excellent control and extreme longevity in a compact, lightweight design. It features a larger diaphragm to provide greater sensitivity.
THB0.00
Choose Quantity
Product Details
Features & Benefits
• Large diaphragm to provide greater sensitivity
• Minimum offset from a required setpoint
Specifications
• Sizes : 1/4" – 3/4" (DN8 – DN20)
• Cv (Kv) : up to 4.4 (up to 3,8)
• Diaphragm : Stainless Steel, Elastomer
• Setpoint : 1 to 180 psi (0,07 – 12, 4 bar)
• Body Material : Ductile Iron, Bronze, Carbon Steel, Stainless Steel
• End Connection : Threaded, Flanged, Socket Weld, Butt Weld
