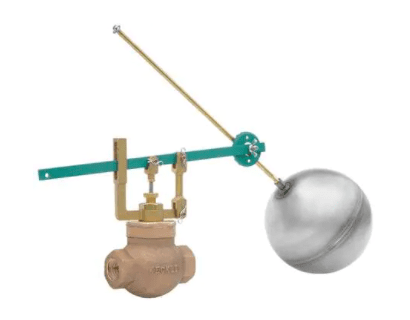

KECKLEY, Float Valve Assembly, Single, Size 3/4 In., Float Size: 7"
Tags:
• Max. Temp.: 35 Degrees to 125 Degrees F
• Connection Type: NPT
• Seat: Single
THB0.00
Choose Quantity
Product Details
• Max. Temp. : 35 Degrees to 125 Degrees F
• Connection Type : NPT
• Seat : Single
• Compliance : N/A
• Body Material : Bronze
• Features : Internal Pilot Control
• Temperature Range : 35 to 125 Degrees F
• Valve Material : Bronze
• Float Dia. : 7"
• Rod Length : 16 in
• Float Size : 7"
• Valve Flow - Pressure (2) : 40 psi
• Rod Material : Brass
• Service : Dead End
• Valve Flow - Flow (2) : 41 gpm
• Style : Type 7, Globe
• Valve Flow - Pressure (1) : 1 psi
• Rod Thread : 5/16 in -18
• Valve Flow - Flow (1) : 6.5 gpm
• Includes : and Ball, Lever, Rod
• Max. Pressure : 130 psi
• Float Material : Stainless Steel
• Connection : NPT
• Mounting : Horizontal Piping
• Item : Float Valve
• Size : 3/4"
• Pipe Size : 3/4"
