MANKENBERG, DM 555, Pressure reducing valves
Tags:

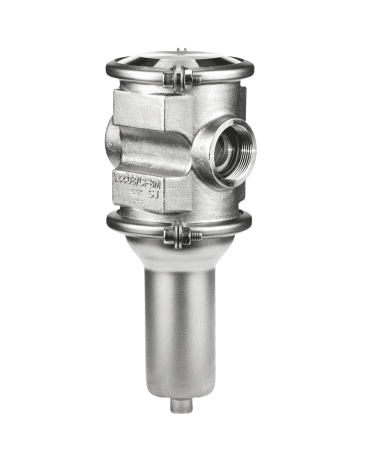

The pressure reducer DM 555
is a spring-loaded proportional control valve for universal application at small and medium flow rates.
The valve body and medium-wetted internal parts are made of stainless steel (1.4404 / 316L) featuring excellent corrosion resistance.
The valve cone is fitted either with a metallic or a soft seal.
THB0.00
Choose Quantity
Product Details
Standard
• Modular design
• Completely made of stainless steel (1.4404 / 316L)
• Soft or metallic seal
• DIN or ANSI flanges, threaded sockets G or NPT
• Non-rising adjusting screw
• Quick-release fastener for the body
Technical data
• Connection DN : 15 - 50
• Connection G : 1/2 - 2
• Inlet pressure : 40
• Back pressure : 0.5 - 20 bar
• Kvs value : 1.3 - 7.5 m³/h
• Temperature : -40 up to 200 °C
• medium : liquids, gases and steam
