MCMASTER-CARR ,PN. 5301T67
Choose Quantity
For Use With | Acetone, Air, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Sodium Hydroxide, Steam, Toluene, Vegetable Oil, Xylene |
Temperature Range | -325° to 1200° F |
Connection Type | Pipe × Pipe |
Fittings | 316 Stainless Steel Threaded NPT Male × 316 Stainless Steel Threaded Union NPT Female |
Pipe Size | 1 1/2 × 1 1/2 |
ID | 1 1/2" |
OD | 2 1/4" |
Bend Radius | 8 11/16" |
Maximum Pressure | 300 psi @ 72 ° F |
Maximum Vacuum | 29 in. of Hg @ 72 ° F |
For Use Outdoors | Yes |
Material | 316 Stainless Steel |
Braid Material | 304 Stainless Steel |
Interior Texture | Ribbed |
External Reinforcement | Braided |
Chemical Resistance | |
No effect (no performance degradation) | Acetone (Up to 170° F), Carbon Dioxide (Up to 700° F), Ethanol (Up to 225° F), Hydrogen Peroxide (10% in Water) (Up to 170° F), Hydrogen Peroxide (30% in Water) (Up to 170° F), Isopropyl Alcohol (Up to 225° F), Liquid Ammonia (Up to 500° F), Liquid Propane (Up to 225° F), Methyl Ethyl Ketone (Up to 200° F), Mineral Oil (Up to 140° F), Mineral Spirits (Up to 140° F), Phosphoric Acid (25% in Water) (Up to 225° F), Sodium Hydroxide (Caustic Soda) (10% in Water) (Up to 225° F), Sodium Hydroxide (Caustic Soda) (30% in Water) (Up to 170° F), Steam (Up to 700° F), Toluene (Methylbenzene) (Up to 225° F), Vegetable Oil (Up to 475° F), Xylene (Up to 275° F) |
Not Recommended | Chlorine, Hydrochloric Acid (10% in Water), Hydrochloric Acid (30% in Water), Liquid Pentane, Phosphoric Acid (85% in Water), Sulfuric Acid (10% in Water), Sulfuric Acid (30% in Water) |
Note | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Other Lengths | 10" to 120" |

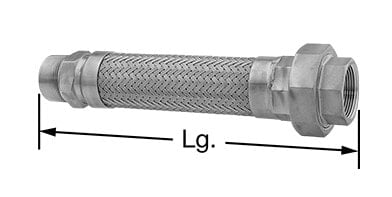

Length | 18 in. |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
