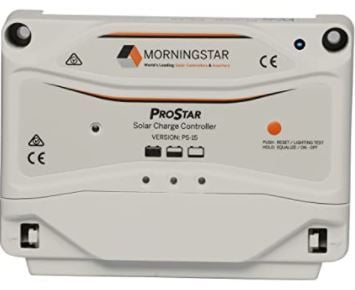

MORNINGSTAR, PS-15, PROSTAR-15 SOLAR CHRGR CONTROLLER
Tags:
• High Temperature Operation : Full nameplate current rating, both solar and load up to 60 C continuous
• Auto-Battery-Select : 12V and 24V systems
• Data Logging : Up to 256 days of solar charge and load consumption data
THB6,000.00
Choose Quantity
Product Details
• High Temperature Operation : Full nameplate current rating, both solar and load up to 60°C
• Auto-Battery-Select : 12V and 24V systems
• Data Logging : Up to 256 days of solar charge and load consumption data
• Self-diagnostics : Continuous monitoring and reporting of any errors or system faults through its status LED’s, optional display and communication port
• Meter : High resolution LCD, multi-lingual backlit graphical display of system voltage, current, temperature, lighting settings, etc.
Specifications and Certifications :
Model : PS-15
Charge Rating : 15 amps
Max. PV Open Circuit Voltage (Voc) : 60 volts
Nominal Battery Voltage : 12V or 24V
Battery Voltage Range : 10-35V
Voltage Accuracy : <=0.1% +/- 50mV
Operating Temperature Range : -40 C to +60C
