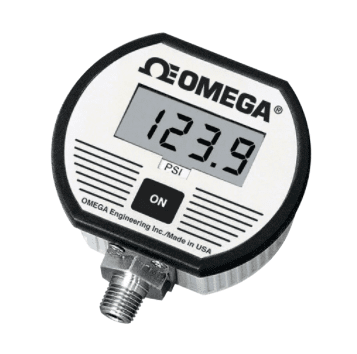

Omega, DPG1000B-100G, Digital Pressure Gauges with Alarm and Analog Outputs
Tags:
The DPG1000 series is a versatile family of industrial pressure/vacuum gauges. All DPG1000 models feature a large digit display in a rugged, splashproof extruded aluminum case. A 1/4 -18 NPT 316 stainless steel fitting is standard for the pressure connection
THB0.00
Choose Quantity
Product Details
• Burst Pressure : 4x rated pressure min
• Accuracy Value: ±0.25%
• Input Type: -30 inHg to 100 psig
• Display Digit Height: 13 mm
• Maximum Ambient Temperature: 85°C (185°F)
• Maximum Amp Rating: 0.005
• Maximum Storage Temperature : 95°C (203°F)
• Measurement Type: Pressure
• Measurement Units: PSIG
• Minimum Storage Temperature: -55°C (-67°F)
• Number of Display Digits: 3.5
• Repeatability: +/-0.10% FSO or better
• Pressure Units: Gauge can be factory scaled to any engineering unit such as psi
• Sample Rate: 3 readings per second
• Wetted Materials: 316 Stainless Steel
