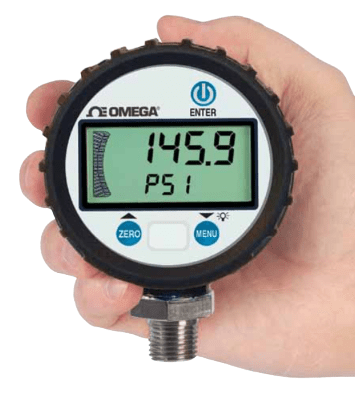

OMEGA, DPG8001, Digital Pressure Gauge
Tags:
The DPG8001 Series of digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit, and the price is comparable to mechanical test gauges.
THB0.00
Choose Quantity
Product Details
• 0.25% Full Scale Terminal Point Accuracy
• 5 Digit LCD Display with Large 12.2 mm (0.48") Digits
• 20 Segment Bar Graph Display
• User-Selectable Engineering Units
• MIN/MAX Readings
• Tare Function Standard
• Environmentally Protected to NEMA 4X (IP65)
• All Stainless Steel Wetted Parts
• Rubber Boot Standard
SPECIFICATIONS :
• Accuracy: 0.25% FS terminal point
• Ranges: Vacuum through 25,000 psi gauge, vacuum and compound gauge
• Battery: Two “AA” alkaline included
• Battery Life: 2000 hr. minimum
• Battery Indicator: 4 levels
• Storage Temperature: -20 to 80°C (-4 to 176°F)
• Operating Temperature: -20 to 60°C (-4 to 140°F)
• Temperature Effects: 0.04%/°F (-20 to 180°F) zero and span
• Update Rate: 1 Hz
• Cycle Life: 100 million
• Vibration: MIL-STD-202G Method 201A
• Shock: MIL-STD-202G Method 213 B
• Display: 5-digit numeric top line, 5 character alphanumeric lower line
• Bar Graph: 20 segment vertical bar graph
• Digit Height: 12.2 mm (0.48") upper line; 6.1 mm (0.24") lower line
• Display Indicators: 4-segment battery life indicator plus dedicated icons for gauge timer, backlight timer, tare, min and max
• View Angle: 12 o’clock
• Backlight: Standard, blue
• Enclosure Material (Case and Back): Polycarbonate/ABS
• Window: Polycarbonate
• Enclosure Rating: NEMA 4X (IP65)
• Protective Boot: Standard
• Serial Number: Yes
• Proof Pressure
Vac to <300 psi: 200% range
300 to <5000 psi: 150% range
5000 to 25,000 psi: 120% range
• Burst Pressure
Vac to <300 psi: 800% range
300 to <5000 psi: 500% range
5000 to 25,000 psi: 300% range
