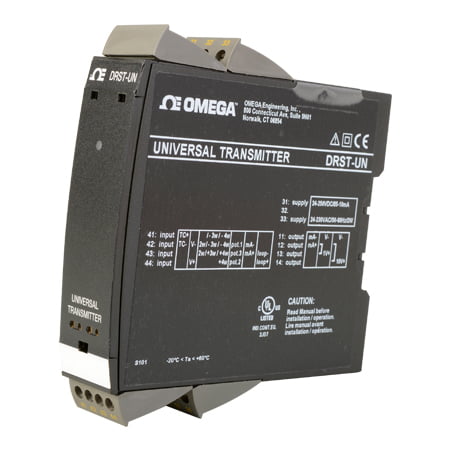

OMEGA, DRST-UN, Universal Programmable Signal Transmitter, DIN Rail compatible.
Tags:
- Input for RTD, TC, Ω, potentiometer, mA and V
- 2-wire supply > 16 V
- UL and cUL Approval
- Output for current and voltage
- Universal AC or DC supply
THB0.00
Choose Quantity
Product Details
OMEGA, DRST-UN, Universal Programmable Signal Transmitter. DIN Rail compatible.
Programmable by way of detachable display front, process calibration, signal simulation, password protection, error diagnostics and help text available in several languages
Application :
• Linearized, electronic temperature measurement with RTD or TC sensor.
• Conversion of linear resistance variation to a standard analog current / voltage signal, i.e. from solenoids and butterfly valves or linear movements with attached potentiometer.
• Power supply and signal isolator for 2-wire transmitters.
• Process control with standard analog output. Galvanic separation of analog signals and measurement of floating signals.
• The DRST-UN is designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
Specifications :
• Operating Temperature : -20 to 60°C
• Storage Temperature : -20 to 85°C
• Calibration Temperature : 20 to 28°C
• Relative Humidity : < 95% RH (non-cond.)
• Protection Degree : v IP20
Mechanical Specifications :
• Dimensions (H x W x D) : 109 x 23.5 x 104 mm
• Weight Approx : 145 g
• Wire Size : 1 x 2.5 mm 2 stranded wire
• Screw Terminal Torque : 0.5 Nm
• Vibration : IEC 60068-2-6
• 2 to 13.2 Hz : ±1 mm
• 13.2 to 100 Hz :±0.7 g
