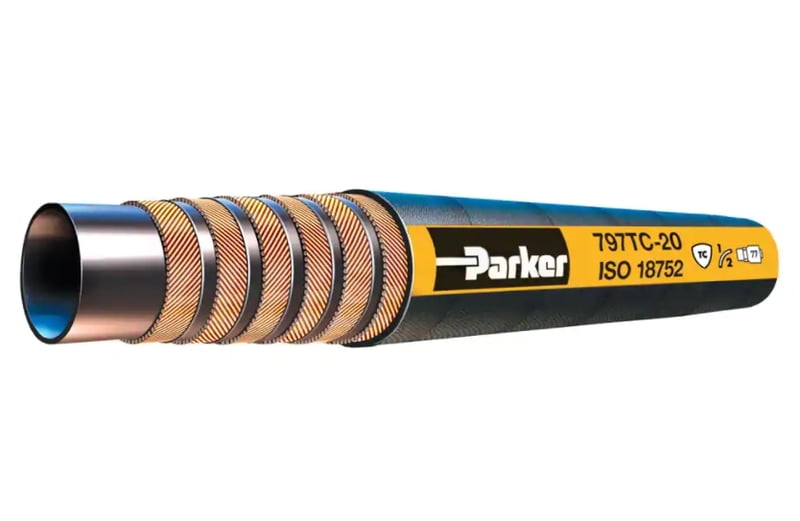

Parker, 797TC-6, Hydraulic Constant Working Pressure Hose 6000 PSI
Tags:
Parker’s 797 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 6,000 PSI in all sizes. The 797 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 797 hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from ?” to 2” in diameter with different cover options available for various markets.
THB0.00
Choose Quantity
Product Details
• Hose Inside Diameter : 3/8 inch, 10 mm
• Hose Outside Diameter : 0.66 inch, 17 mm
• Hose Inner Tube Material : Proprietary synthetic rubbe
• Cover Material : Synthetic rubber abrasion resistant
• Minimum Bend Radius : 2-1/2 inch, 63 mm
• Maximum Operating Temperature : 257 °F, 125 °C
• Compatible Fitting : 43 Series
•Hose Cover Type : ToughCover
• Media : Hydraulic Fluids, Lubricants,
• Nominal Hose Inside Diameter : 10
• Maximum Operating Pressure : 6000 psi, 42 MPa
• Hose Reinforcement Material : Four- or six-spiral steel wires
• Cover Color : Black
• Minimum Operating Temperature : -40 °F, -40 °C
• Specifications Met : ISO 18752
• Application : Petroleum base hydraulic fluids and lubricating oils
