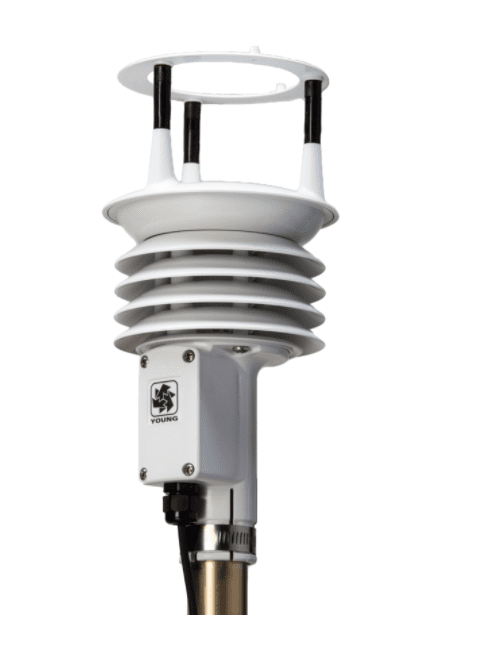

RM Young, 92000, ResponseONE WEATHER TRANSMITTER
Tags:
The YOUNG Model 92000 ResponseONE Weather Transmitter measures four key meteorological variables with one compact instrument. It is ideal for many weather monitoring applications requiring accurate and reliable measurements. Ultrasonic wind speed and direction, atmospheric pressure, humidity and temperature sensors are carefully integrated into an enclosure optimized for durability, airflow and mitigation of solar radiation effects.
THB0.00
Choose Quantity
Product Details
• Wind Speed:
Range: 0–70 m/s (156mph)
Resolution: 0.01 m/s
Accuracy: ±2% or 0.3 m/s (0–30m/s), ±3% (30 – 70 m/s)
• Wind Direction:
Azimuth Range: 0-360°
Resolution: 0.1°
Accuracy: ±2°
• Temperature:
Range: -40 to +60°C
Resolution: 0.1°C
Accuracy: ±0.3°C (-20 to +50°C), ±0.7°C (other)
• Relative Humidity:
Range: 0–100%
Resolution: 0.1%
Accuracy: ±2% (5-95%)
• Atmospheric Pressure:
Range: 500–1100 hPa
Resolution: 0.1 hPa
Accuracy: ±0.3 hPa (0 to +60°C), ±1.0 hPa (-40 to 0°C)
• Electronic Compass:
Range: 0–360°
Resolution: 0.1°
Accuracy: ±2°
• Serial Output (selectable):
Interface: RS-232, RS-485/422, SDI-12
Formats: NMEA, SDI-12, ASCII (polled or continuous)
Baud Rates: 1200, 4800, 9600, 19200 and 38400
• Power Requirement:
Voltage: 10–30 VDC
Current: 7 mA @ 12 VDC typical, 80 mA max
• EMC Compliance :FCC Class A digital device, IEC standard 61326-1
• Operating Temperature :-40 to +60°C
• Protection Class :IP65
• Dimensions :
Overall height: 28.3 cm (11.1 in)
Diameter: 13.5 cm (5.3 in)
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
• Weight:0.7 kg (1.5lb)
