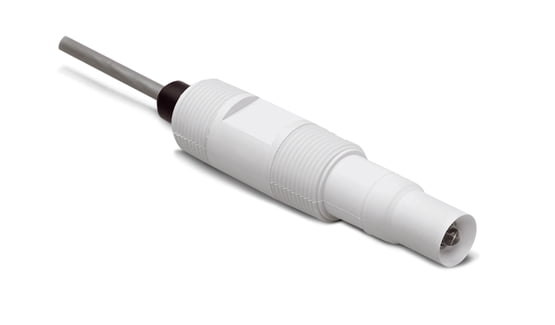

Rosemount, 396P/396PVP, pH/ORP Sensor
Tags:
The Rosemount 396P/396PVP sensors are specifically designed for improved life in harsh, dirty, and abrasive applications such as lime slurry waste treatment, paper machine headbox and pigment/dye applications, where large quantities of suspended solids are present.
THB0.00
Choose Quantity
Product Details
The Rosemount Analytical Model 396P / 396PVP TUpH pH/ORP Sensors are SMART enabled (-01). SMART preamplifier option is the standard option with the 396P. In addition, the 396P features an optional integral hermetically sealed preamplifier with 25 ft cable lengths. The 396P is housed in a molded reinforced polypropylene body with 1 in. MNPT threads suitable for insertion, submersion or flow through installation. The sensor includes a general purpose pH electrode or a platinum ORP electrode, a reference junction and a solution ground. The 396P comes standard with a recessed electrode; an optional slotted tip is also available. Automatic temperature compensation, Pt 100 or 3K Balco, is standard with the 396P.
Features :
- SMART enabled
- Silcore technology provides increased sensor life
- Quick cable to sensor release
- Minimal sensor maintenance
- Maximum sensor life
- Field proven Accuglass
- Advanced sensor diagnostics
