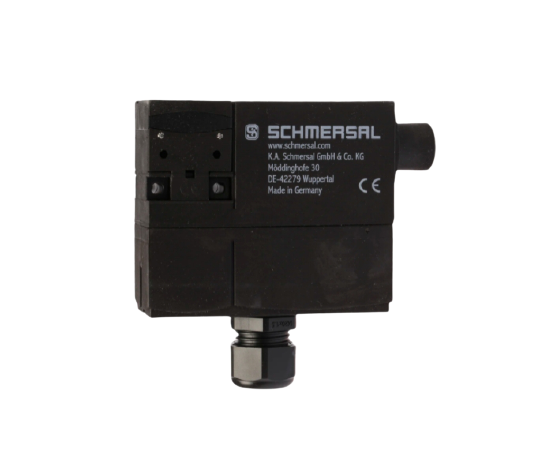

Schmersal, AZM 170, Solenoid Interlock Switch, Power to Unlock, 24V ac/dc
Tags:
The Schmersal AZM170 series power to unlock solenoid interlock switch has power supply voltage rating of 24VAC/DC with 2NC safety contact configuration. It offers robust guard door protection in many applications. This interlock switch is made of double-insulated thermoplastic enclosures to withstand industrial environments.
THB0.00
Choose Quantity
Product Details
Specifications :
• Power to Lock / Unlock : Power to Unlock
• Supply Voltage : 24V ac/dc
• Series : AZM 170
• Actuator Included : No
• Safety Contacts : 3NC
• Conduit Entry : 1/2 in NPT
• Auxiliary Contacts : 1NO
• Housing Material : Plastic
• IP Rating : IP67
• Length : 30mm
• Depth : 100.5mm
• Width : 108mm
Features and Benefits :
• Cable entry of 1M20 x 1.5
• Electromechanical actuation type
• Plastic, glass-fibre reinforced thermoplastic
• Self-extinguishing body material
• Operating temperature ranging between -25°C and 60°C
• Interlock with protection against incorrect locking
• Long life
• High holding force
• screw connection
• Manual release
• Compact design
