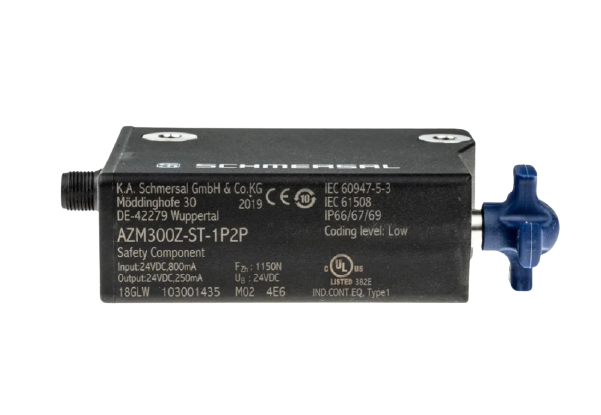

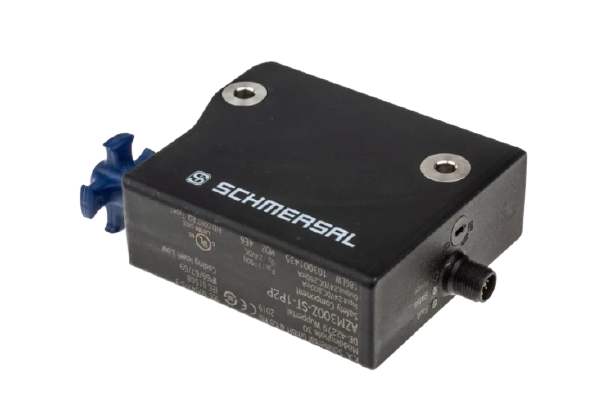

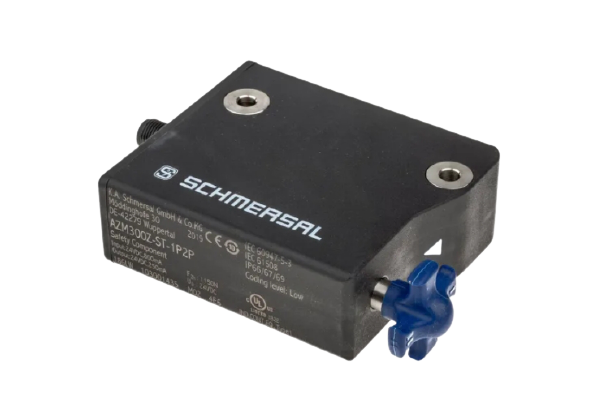

Schmersal, AZM300Z-ST-1P2P, Solenoid Interlock Switch, Power to Unlock, 24V dc
Tags:
Make your workplace safer with this solenoid interlock switch from Schmersal. It's designed to keep safety gates closed and to cut off power to machinery in hazardous situations. The unit has a supply voltage rating of 24V DC with one p-type diagnostic output and two p-type safety outputs.
THB0.00
Choose Quantity
Product Details
Features and Benefits :
• Suitable for both hinged and sliding guards
• Robust thermoplastic enclosure with screw terminals for longevity
• IP (ingress protection) rating of 69K offers full protection against dust, high-pressure water and high temperatures
• Three LEDs (light-emitting diodes) to easily monitor operating conditions
Specifications :
• Power to Lock / Unlock : Power to Unlock
• Supply Voltage : 24V dc
• Series : AZM 300
• Actuator Included : No
• Safety Contacts : 2 PNP
• Conduit Entry : 1/2 in NPT
• Auxiliary Contacts : 1 PNP
• Housing Material : Plastic
• IP Rating : IP66, IP67, IP69K
• Length : 85mm
• Width : 100mm
• Depth : 35mm
• Maximum DC Voltage : 26.4V dc
