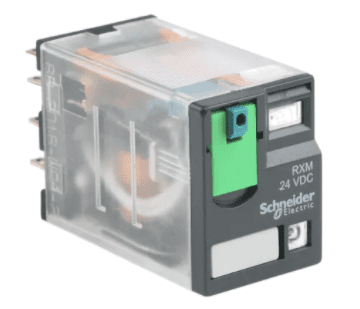

Schneider Electric, 24V dc Coil Non-Latching Relay 4PDT, 8A Switching Current Plug In, 4 Pole
Tags:
• Range of miniature plug-in relays on base, RXZE2 type
• Simple to use- no adjustment required for standard applcations
• Easily integrated into current devices & can be adapted for all voltages
• Test button and mechanical indicator of relay status
• Bases for assembly on DIN rail or with screws to be ordered separately
THB0.00
Choose Quantity
Product Details
• Coil Voltage: 24V dc
• Coil Power: 900mW
• Coil Resistance: 650 ํ
• Contact Configuration: 4PDT
• Mounting Type : Plug In
• Switching Current: 8A
• Terminal Type : Plug In
• Number of Poles: 4
• Maximum Switching Voltage AC : 250V
• Standards MetCE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
• Series: RXM
• Length: 21mm
• Height: 27mm
• Depth: 47.7mm
• Maximum Switching Power AC: 1.5 kVA
• Maximum Switching Power DC: 168 W
RXM4AB2BD Miniature Plug-in Relay :
• Forms part of the Zelio Relay range
•The contacts composition - 4 C/O
• The control circuit voltage is 24 V DC
• With LED
• Flat pin shape
• The rated impulse withstand voltage is 2.5 kV for 1.2/50 ?s
• Maximum switching voltage 250 V conforming to IEC
• Mechanically durable for up to 10000000 cycles
• Product certifications - CE, CSA, GOST, RoHS, UL, REACH and Lloyd's
• Product standards - EN/IEC 61810-1, UL 508 and CSA C22.2 No 14
• Operated in any position
