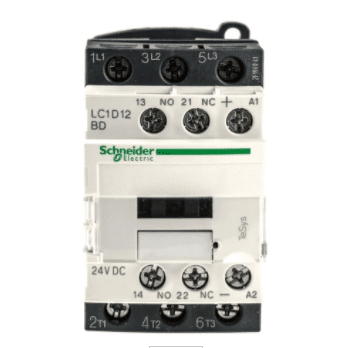

Schneider, Electric Tesys D LC1D 3 Pole Contactor - 12 A, 24 V dc Coil, 3NO, 5.5 kW
Tags:
TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.
THB0.00
Choose Quantity
Product Details
• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications
Specifications :
• Coil Voltage: 24 Vdc
• Number of Poles: 3
• Contact Current Rating: 25 A
• Power Rating: 5.5 kW
• Range: TeSys D
• Series: LC1D
• Normal State Configuration: 3 N/O
• Contact Voltage Rating: 690 Vac
• Number Of Auxiliary Contacts: 2
• Terminal Type: Screw
• Width: 45mm
• Depth: 93mm
• Maximum Operating Temperature: +60°C
• Minimum Operating Temperature: -5°C
• Length: 77mm
