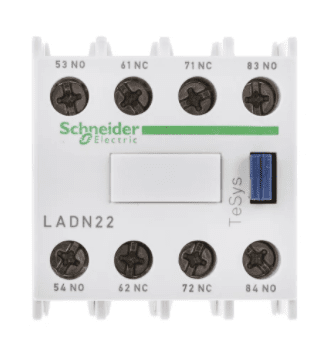

Schneider , LADN22, Electric Tesys Auxiliary Contact Block, Front mount Aux contact 2NO + 2NC
Tags:
• Low consumption on your control circuit
• 30 Mcycles of mechanical durability
• Compact, lightweight and easily attached to compatible contactors. Front side mounting
• Simplified mounting directly to the contactor/circuit breaker. Compact in size and equipped with EverLink terminal technology meaning permanent tightening even in the event with conductor creep
THB0.00
Choose Quantity
Product Details
• Number of Contacts : 4
• Range: Tesys
• Normal State Configuration: 2NO/2NC
• Mounting Style: Front Mount
• Contact Current Rating: 10 A
• Contact Voltage Rating: 600 V ac
• Pole and Throw Configuration: 4P
• Terminal Type: Screw
• Minimum Operating Temperature: -5°C
• Maximum Operating Temperature: +60°C
• Series: LADN
