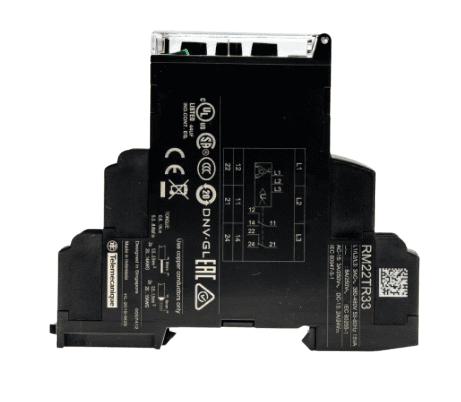

Schneider, RM22TR33, Electric Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase
Tags:
THB0.00
Choose Quantity
Product Details
Schneider Electric Three Phase Control Relay RM22TR33
Forming part of the Zelio control range of products, the RM22TR33 control relay has been created and designed to monitor the sequence of phases, phase loss, overvoltage and under-voltage events. The RM22TR33 is a multifunctional control relay that has a switching capacity of 2000 VA
Specifications :
• Monitoring Application : Phase, Voltage
• Contact Configuration : DPDT
• Voltage Sensitivity : Overvoltage, Undervoltage
• Electrical Phase : 3
• Voltage Sensing Range : 380 - 480V ac
• Phase Sensitivity : Phase Failure, Phase Sequence
• Time Delay : 0.1 - 30s
• Frequency Sensing Range : 50 - 60Hz
• Maximum Operating Temperature : +60°C
• Dimensions : 22.9 x 79.5 x 90mm
• Mounting Type : DIN Rail
• Current Range : 10mA
• Maximum Voltage Sensed : 480V ac
• Width : 79.5mm
• Operating Temperature Range : -20 - +60°C
• Minimum Voltage Sensed : 380V ac
• Length : 22.9mm
• Height : 90mm
• Series : RM22TR
• Minimum Operating Temperature : -20°C
• Number of Poles : 2
• Terminal Type : Screw
