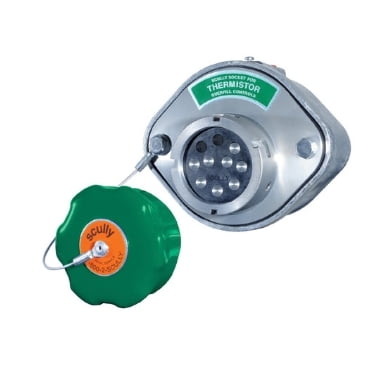

Scully, 07720, SJ-6S, Thermistor Socket, API Thermistor Standard, 8 Pin
Tags:
Scully Sockets are part of a complete vehicle mounted overfill prevention and grounding systems. With over 90% of all bottom-loading terminals in the United States using Scully Overfill Prevention Systems, Scully sockets offer you the compatibility you need at any terminal. The style of plug at each loading terminal that your vehicles load should be considered to ensure a compatible connection.
THB0.00
Choose Quantity
Product Details
SPECIFICATIONS
• Part : 07720
• Model : SJ-6S
• Socket Type : Thermistor - API Thermistor Standard, 8 Pin
• Socket Body : Die Cast Zinc
• Housing : Zinc/Aluminum Alloy
• Insulator : Glass Filled Polycarbonate
• Dust Cap : Molded Vinyl
• Conduit Entry : Two 1/2 in. NPT Threaded Entry Holes
• Contact : Scully Style Stainless Steel SAE J560 Style - Zinc Plated Brass
• Connections : Provided by Screw Terminals
FEATURES
• Designs which meet API (American Petroleum Institute) standards for thermistor systems
• Compatible with Scully loading rack overfill prevention controls- the #1 choice worldwide
• Durable construction to withstand the rigors of road travel
• Stainless steel contact pins for long-lasting performance
• Easy gripping vinyl protective cap included
• Internal mounting holes and NPT threaded conduit entry holes for ease and flexibility during installation
