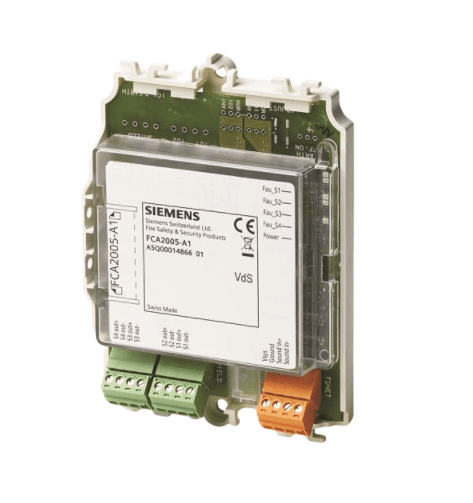

Siemens, FCA2005-A1, Sounder module
Tags:
With the sounder module, it is possible to split a collective horn line onto 4 individual lines. Each line controls and monitors an individual sounder. 2 sounder modules can also be used, but must then be cascaded.
The sounder module can be mounted onto the mounting plate FHA2007-A1 or onto the U-rail TS35 with the enclosed mounting feet.
THB0.00
Choose Quantity
Product Details
• Operating voltage : DC 21…28.6 V
• Operating current : 2000 mA
• Cable capacity : 0.08...1.5 mm2
• Quiescent current : 20 mA
• Supervised output : 4 x 1 A
• Protection category : IP30
• Relative humidity : less than or equal to 95 % rel.
• Color housing/cover : Pure white, ~ RAL 9010 / Transparent matt
• Dimensions (W x H x D) : 132 x 90 x 24 mm
