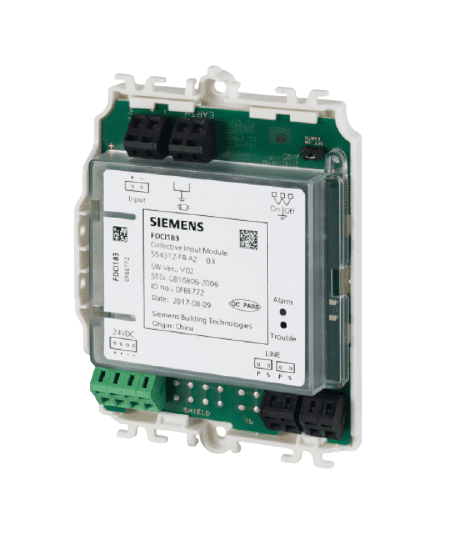

Siemens, FDCI183, Collective Input Module
Tags:
FDCI183
Collective Input Module
1 monitored inputs as collective detector connection
THB0.00
Choose Quantity
Product Details
• FD18-BUS Operating voltage : 12... 33 VDC
• FD18-BUS Operating current : Quiescent: 0.45mA , Alarm : 1.1mA
• External power supply
– Input voltage : 18... 32 VDC @ 0.15A
• End of line : 1.5KE20CA(EOL) or EOL22(ex)
• Operating temperature : –10... +50 °C
• Storage temperature : –30... +70 °C
• Humidity : less than or equal to 95 % rel.
• Communication protocol : FD18-BUS
• Load factor : 3
• Connection terminals : 1.0... 1.5 Sq.mm
• Color
– Housing : Pure white, RAL 9010
– Cover : transparent matt
• Protection category EN60529 / IEC529
– with FDCH221 housing : IP65
• Line impedance of collective detection line : 150(ohm) (twins cable)
