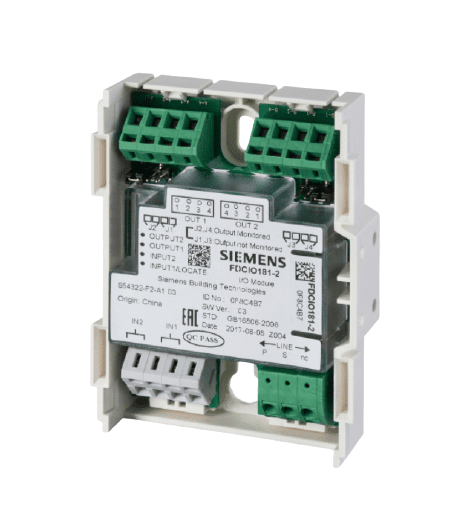

Siemens, FDCIO181-2, Input/Output Module
Tags:
2 monitored input, 2 monitored output
Output lines monitored for open line or short/open circuit (when potential output not activated)
THB0.00
Choose Quantity
Product Details
• Operating voltage : 12…32 V DC
• Operating current (quiescent) : 0.56 mA
• Activation current : 0.85 mA
• Output
- Capacity : 2 A @ 24 V DC
- Monitoring resistor : 3.3 k(ohm) (1/4w)
- Diode : 1N5404
• Input
- Monitoring resistor 3.3 k(ohm) / 680 (ohm)
• Operating temperature : 0...+42 °C
• Storage temperature : –20...+75 °C
• Humidity : less than or equal to 95% rel.
• Communication protocol : FD18-BUS
• Connection terminals : 1.0...1.5 mm2
• Color
– Housing : White, RAL 9010
– Cover : Transparent
• Protection category EN60529 / IEC529/GB4208-93
– With FDCH221 housing : IP65
• Approval (for Russian) : TR RF N123-FZ
