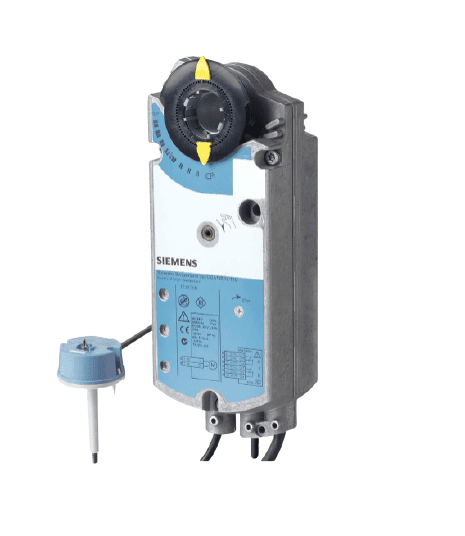

Siemens, GGA126.1E/T10, Actuator for fire protection dampers
Tags:
Siemens, GGA126.1E/T10 , Actuator for fire protection dampers, AC/DC 24 V, 2-position, 18 Nm, spring return 90/15 s, 2 auxiliary switches, shaft 10 x 10 mm, with thermosensor
THB0.00
Choose Quantity
Product Details
• 2-position
• Spring return to failsafe position
• Temperature monitoring unit (for 72 °C)
• Fixed auxiliary switches for switching points 5 ° and 80 °
• Rigid connection between actuator and damper square shafts (10x10)
• Manual setting
• Position indicator
• Robust, lightweight all metal housing made from die-cast aluminium and 0.9 m connecting cable
• Degree of protection: Temperature monitoring unit IP54 / Actuator IP54
Technical Specifications
• Torque : 18 Nm
• Air damper area : 2.5 m²
• Angular rotation : 90°
• Power consumption : 7 VA, 5 W
• Positioning time : Open:90 s, Close:15 s
• Connection cable : Supply: 2-wire 0.75 mm²; Auxiliary switch: 6'-wire0.75 mm²
• Positioning signal : 2-position
• Degree of protection : IP54
• Ambient temperature, operation : -20…50 °C
• Medium temperature : -32…50 °C
• Ambient humidity, operation : 95 % r.h.
• Dimensions (W x H x D) : 71 x 280 x 100 mm
• Operating voltage : AC/DC 24 V
• Shaft linkage : 10 x 10 mm
