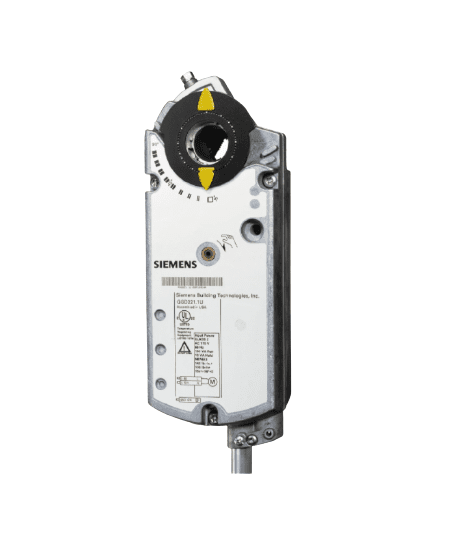

Siemens, GGD121.1U, Damper Actuator
Tags:
Siemens, GGD121.1U, Damper Actuator, Electronic, 142 lb./in(16Nm). Torque, 24 Volts AC, For use on UL listed smoke control dampers or combination fire/smoke rated dampers
OpenAir GGD Series Electric Damper Actuator, rotary, spring return, 142 lb-in (16 Nm), 24 Vac, 2-position control, 15 sec run time, Fire/Smoke
THB0.00
Choose Quantity
Product Details
• Torque : 142 lb-in
• Angular rotation : 90°
• Power consumption : Running: 150 VA @ 60 Hz or 160 VA @ 50 Hz, Holding: 10 VA
• Positioning time : Open:15 s, Close:15 s
• Cable length : 3 ft
• Connection cable : 18 AWG; 0.9 m; Teflon®
• Dimensions (W x H x D) : Actuator: 3-15/16 W x 11 H x 2-15/16 D in. Shaft Diameter: 3/8 to 1 in. standard, 1.05 in. oversize; Shaft Length Min: 3/4 in
• Operating voltage : AC 24 V
