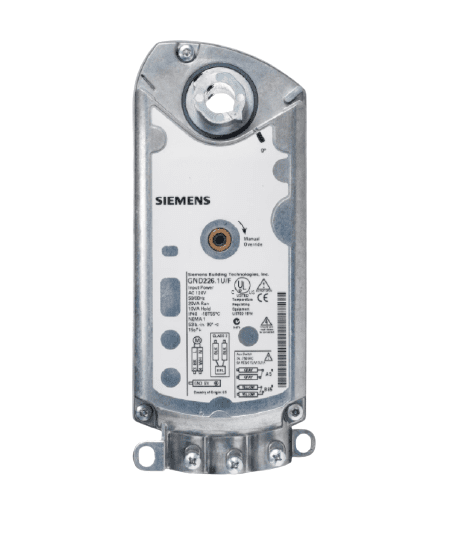

Siemens, GND126.1U, OpenAir Damper Actuator, SR, UL Smoke 53lb-in, Fire/Smoke
Tags:
OpenAir GND Series Electric Damper Actuator, rotary, spring return, 53 lb-in (6 Nm), 24 Vac/Vdc, 2-position control, 15 sec run time, Fire/Smoke, dual auxiliary switches. Designed for UL Listed Smoke Control Dampers and for Combination Fire/Smoke Rated Dampers.
THB0.00
Choose Quantity
Product Details
• Torque : 53 lb-in
• Angular rotation : 90°
• Power consumption : Running: 20 VA / 12W, Holding: 8 VA / 6 W
• Positioning time : Open:15 s, Close:15 s
• Cable length : 3 ft
• Connection cable : 18 AWG; 0.9 m; FEP Teflon®
• Positioning signal : 2-position
• Dimensions (W x H x D) : Actuator: 3-1/4 W x 9 H x 3 D in. Shaft Diameter: 1/4 in. round; Shaft Length Min: 1.4 in
• Operating voltage : AC 24 V
• Auxiliary switch : 2
• Material, housing : NEMA 1, die-cast aluminum alloy enclosure
