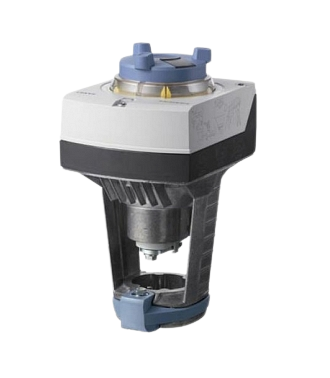

Siemens, SAX 31.03, Electromotoric actuator
Tags:
Electromotive actuator for valves Siemens SAX 31.03. Power supply 230V, 3-point control, running time 30s.
THB0.00
Choose Quantity
Product Details
The SAX electromotive actuator is used in conjunction with SIEMENS valves series V..F 21, V..F31, V..F40 + 41, V..G41 and VVF52. The actuator stroke is 20mm and is designed for direct mounting on the valve. No drive adjustment is required. The equipment includes manual control, position indicator and status indication via LEDs.
Control | 3-point |
Emergency functions | No |
Lifting force | 800 N |
Power | 230 VAC |
Stroke | 20 mm |
Weight | 1.90 kg |
