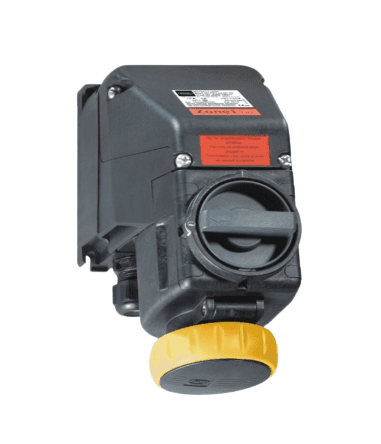

STAHL, 8570/11-304, WALL-MOUNTING SOCKETS 16 A
Tags:
STAHL Series 8570/11 SolConeX sockets for Zone 1/21 in a 3-, 4- and 5-pole version have full AC-3switching capacity up to 16 A. The high degree of protection IP66 guarantees the highest level of protection against the penetration of dust and water in any application position. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily.
THB1.00
Choose Quantity
Product Details
ELECTRICAL DATA :
• Rated operational voltage : 100 ... 130 V AC
• Rated operational current : max. 16.000 A
• Rated operational current note : Optional up to 20 A
• Electrical service life : > 5x10^3 switching cycles
• Mechanical service life : > 5x10^3 switching cycles
• Type of voltage : Low voltage
• Rated operational current main contacts : 16 A
• Switching capacity main contacts : 4 kW: 220 / 230 / 240 V
: 7.5 kW: 380 / 400 / 415 / 500 V
: 11 kW: 600 / 690 V
• Frequency range : 50 / 60 Hz
MECHANICAL DATA :
• Enclosure material : Polyamide, Glass fibre reinforced
• Silicone-free : Yes
• Solid connection terminals : 1 x 1.5 mm2 ... 2 x 6.00 mm2
• Finely stranded connection terminals : 1 x 1.5 mm2 ... 2 x 4.00 mm2
• Connection terminals USA min.: 16 AWG
• Max. USA connection terminals : 10 AWG
• Type of connection cable : Finely stranded, solid
• Width : 105.000 mm
• Height : 168.000 mm
• Length : 232.000 mm
• Impact strength (IEC 60079) : 7.00 J
• Impact strength (IEC 62262) : IK10
• Colour code : yellow
• Coding (clock hour position) : 4
• Lockable in : in 0- and I-position
• Series : SolConeX
• Detailed number of poles : 1 P + N + PE
• Weight : 1.120 kg
• Weight : 2.47 lb
