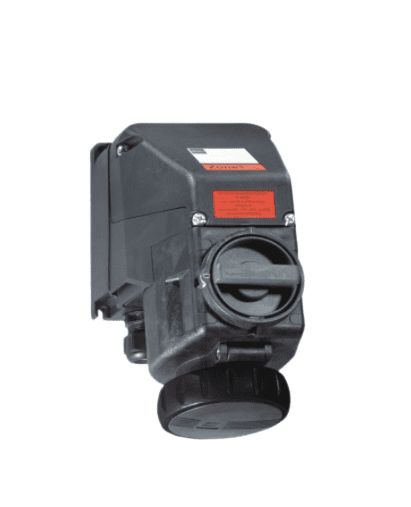

STAHL, 8570/11-507, WALL-MOUNTING SOCKETS 16 A
Tags:
STAHL Series 8570/11 SolConeX sockets for Zone 1/21 in a 3-, 4- and 5-pole version have full AC-3switching capacity up to 16 A. The high degree of protection IP66 guarantees the highest level of protection against the penetration of dust and water in any application position. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily.
THB0.00
Choose Quantity
Product Details
ELECTRICAL DATA :
• Rated operational voltage: 277/480 ... 288/500 V AC
• Rated operational current: max. 16.000 A
• Rated operational current note: Optional up to 20 A
• Electrical service life: > 5x10^3 switching cycles
• Mechanical service life: > 5x10^3 switching cycles
• Type of voltage: Low voltage
• Rated operational current main contacts: 16 A
• Frequency range: 50 / 60 Hz
MECHANICAL DATA :
• Enclosure material: Polyamide, Glass fibre reinforced
• Silicone-free: Yes
• Solid connection terminals: 1 x 1.5 mm2 ... 2 x 6.00 mm2
• Finely stranded connection terminals: 1 x 1.5 mm2 ... 2 x 4.00 mm2
• Connection terminals USA min.: 16 AWG
• Max. USA connection terminals: 10 AWG
• Type of connection cable: Finely stranded, solid
• Width: 115.000 mm
• Height: 180.000 mm
• Length: 248.000 mm
• Impact strength (IEC 60079): 7.00 J
• Impact strength (IEC 62262): IK10
• Color code: black
• Coding (clock hour position): 7
• Lockable in: in 0- and I-position
• Series: SolConeX
• Detailed number of poles: 3 P + N + PE
• Weight: 1.450 kg
