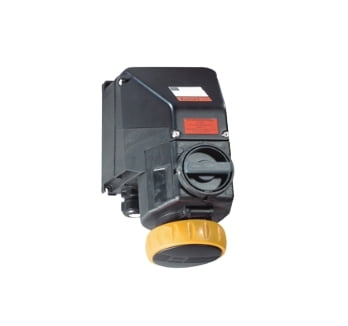

STAHL, 8571/11-504, Switch socket Explosion-protected
Tags:
R. STAHL Series 8571/11 SolConeX sockets for Zone 1/21 in a 3-, 4- and 5-pole version have full AC-3switching capacity up to 32 A. The high degree of protection IP66 guarantees the highest level of protection against the penetration of dust and/or water in any application position.
THB0.00
Choose Quantity
Product Details
• Type : 8571/11-504AC rated operational voltage : 75 V 130 V
• Frequency range : 50 - 60 HzDetailed number of poles : 5 P (3 P + N + PE)
• Colour code : Yellow
• Coding (clock hour position) : 4
• Enclosure material : Polyamide
• Application range (zones) : 1 , 2 , 21 , 22
• Scope of validity : European Union (ATEX) IECEx
• Min. ambient temperature : -30 °C
• Max. ambient temperature : +55 °C
• Rated operational current : 32 A
• Gas explosion protection : II 2 G Ex db eb IIC T5 Gb
• Dust explosion protection : II 2 D Ex tb IIIC T75 °C Db
• Max. ambient temperature 2 : +40 °C
• Gas explosion protection2 : II 2 G Ex db eb IIC T6 Gb
• Dust explosion protection 2 : II 2 D Ex tb IIIC T60 °C Db
• Degree of protection (IP) : IP66
• Entries : 2 x M32 x 1.5
• Screw connections : 1 x M32 x 1.5
• Entry type 1 : 8161/7-M32-2109
• Cable entry material : Polyamide, black
• Cable diameter : 9 ... 21 mm
• Stopping plug : 1 x M32 x 1.5
• Stopping plug material : Polyamide, black
