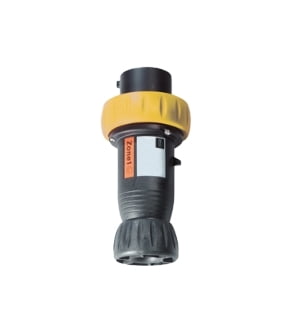

STAHL, 8571/12-504, Plug Explosion-protected
Tags:
R. STAHL Series 8571/12 SolConeX plugs for Zone 1/21 are 4- or 5-pole versions up to 32 A. The floating pins allow them to be inserted and removed quickly and easily. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from high-quality materials ensure optimum electrical contact.
THB0.00
Choose Quantity
Product Details
• Type : 8571/12-504
• AC rated operational voltage : 75 V 130 V
• Frequency range : 50 - 60 Hz
• Detailed number of poles : 5 P (3 P + N + PE)
• Colour code : Yellow
• Coding (clock hour position) : 4
• Enclosure material : Polyamide
• Application range (zones) : 1 , 2 , 21 , 22
• Scope of validity : European Union (ATEX) IECEx
• Min. ambient temperature : -30 °C
• Max. ambient temperature : +55 °C
• Rated operational current : 32 A
• Gas explosion protection : II 2 G Ex db eb IIC T5 Gb
• Dust explosion protection : II 2 D Ex tb IIIC T75 °C Db
• Max. ambient temperature 2 : +40 °C
• Gas explosion protection2 : II 2 G Ex db eb IIC T6 Gb
• Dust explosion protection 2 : II 2 D Ex tb IIIC T60 °C Db
• Degree of protection (IP) : IP66
• Entries : -
• Screw connections : -
• Cable diameter : 13 ... 28 mm
