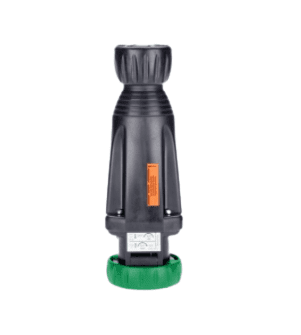

STAHL, 8572/14-302, Coupling
Tags:
STAHL Series 8572/14 coupler are 3-pole 16 A compact coupler made from robust plastic for voltages up to 277 V. Self-cleaning lamellar contacts provide optimum contact and the floating pins allow the plugs to be inserted and removed in the zero position with minimum effort. The integrated locking mechanism prevents disconnection under load.
THB0.00
Choose Quantity
Product Details
ELECTRICAL DATA :
• Rated operational voltage AC: > 50 V AC
• Rated operational current : max. 12.000 A
• Rated operational current : 10.000 A / 12.000 A
• Type of voltage: Low voltage
• Frequency range: > 300 - 500 Hz
MECHANICAL DATA :
• Degree of protection (IP): IP66
• Degree of protection noteaccording to : IEC/EN 60529
• Enclosure material: Polyamide, Glass fibre reinforced
• Silicone-free: No
• Silicone-free note: Optional: Silicone-free variant available on request (ambient temperature -40 °C to +65 ° C)
• Max. USA solid connection terminals: 12 AWG
• Finely stranded connection terminals: 1 x 0.75 mm2 ... 1 x 4.00 mm2
• Min. USA connection terminals: 18 AWG
• Type of connection cable: Finely stranded
• Width: 77.000 mm
• Height: 83.500 mm
• Length: 243.000 mm
• Colour code: green
• Coding (clock hour position): 2
• Series: SolConeX
• Detailed number of poles: 2 P + PE
• Weight: 0.380 kg
• Weight: 0.84 lb
