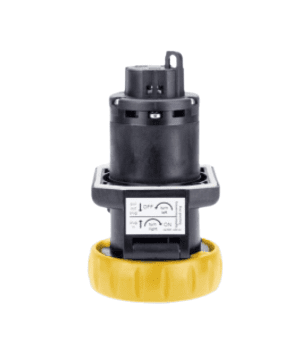

STAHL, 8572/15-304, FLANGE SOCKET 16 A
Tags:
STAHL Series 8572/15 16 A compact flange sockets are suitable for 3-pole applications. The compact dimensions and internal rotary switch enable installation in various applications. Self-cleaning lamellar contacts made from high-quality material provide optimum contact. The integrated locking mechanism prevents disconnection under load.
THB0.00
Choose Quantity
Product Details
ELECTRICAL DATA :
• Rated operational voltage AC: 100 ... 130 V AC
• Type of voltage: Low voltage
• Frequency range: 50 / 60 Hz
MECHANICAL DATA :
• Degree of protection (IP) : IP66
• Degree of protection noteaccording to : IEC/EN 60529
• Enclosure material : Polyamide, Glass fibre reinforced
• Silicone-free : No
• Solid connection terminals : 1 x 0.75 mm2 ... 2 x 4.00 mm2
• Finely stranded connection terminals : 1 x 0.75 mm2 ... 2 x 4.00 mm2
• Min. USA connection terminals : 18 AWG
• Max. USA connection terminals : 10 AWG
• Type of connection cable : Finely stranded, solid
• Width: 76.000 mm
• Height: 80.500 mm
• Length: 66.300 mm
• Colour code: yellow
• Coding (clock hour position): 4
• Series: SolConeX
• Detailed number of poles : 1 P + N + PE
• Weight: 0.380 kg
• Weight: 0.84 lb
