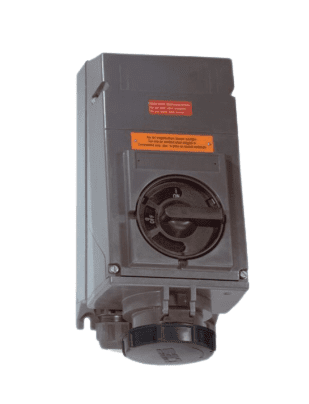

STAHL, 8579/31-505, WALL-MOUNTING SOCKETS 63 A
Tags:
STAHL Series 8579/31 CES sockets for Zone 1/21 in a 4- and 5-pole version have full AC-3 switching capacity up to 63 A. The high degree of protection IP66 guarantees the highest level of protection against the penetration of dust and water in any application position. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily.
THB0.00
Choose Quantity
Product Details
ELECTRICAL DATA :
• Rated operational voltage AC: 347/600 ... 400/690 V AC
• Rated operational current: max. 63.000 A
• Electrical service life : > 2x10^4 switching cycles
• Mechanical service life: > 2x10^4 switching cycles
• Type of voltage: Low voltage
• Auxiliary contacts: 2 (1 NO + 1 NC)
• Frequency range: 50 / 60 Hz
MECHANICAL DATA :
• Enclosure material: Polyester, Glass fibre reinforced
• Silicone-free: No
• Finely stranded connection terminals : 1 x 16 mm2 ... 1 x 50 mm2
• Stranded connection terminals : 1 x 16 mm2 ... 1 x 50 mm2
• Multiple conductor connection: 1
• Min. USA connection terminals : 6 AWG
• Max. USA connection terminals : 1/0 AWG
• Type of connection cable : Finely stranded, stranded
• Width: 180.000 mm
• Height: 211.000 mm
• Length: 407.000 mm
• Impact strength (IEC 60079): 7.00 J
• Impact strength (IEC 62262): IK10
• Colour code: black
• Coding (clock hour position): 5
• Lockable in : in 0- and I-position
• Series: SolConeX
• Detailed number of poles : 3 P + N + PE
• Weight : 8.200 kg
• Weight : 18.08 lb
