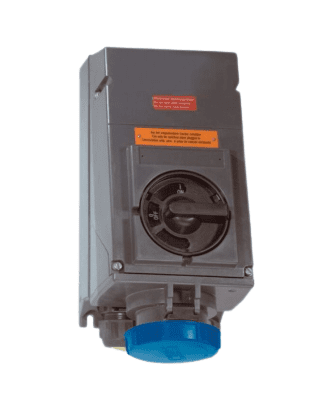

STAHL, 8579/31-509, WALL-MOUNTING SOCKETS 63 A
Tags:
63 A. The high degree of protection IP66 guarantees the highest level of protection against the penetration of dust and water in any application position. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily.
THB0.00
Choose Quantity
Product Details
ELECTRICAL DATA :
• Rated operational voltage AC: 120/208 ... 144/250 V AC
• Rated operational current : max. 63.000 A
• Electrical service life : > 2x10^4 switching cycles
• Mechanical service life : > 2x10^4 switching cycles
• Type of voltage : Low voltage
• Auxiliary contacts : 2 (1 NO + 1 NC)
• Frequency range : 50 / 60 Hz
MECHANICAL DATA :
• Enclosure material : Polyester, Glass fibre reinforced
• Silicone-free : No
• Finely stranded connection terminals : 1 x 16 mm2 ... 1 x 50 mm2
• Stranded connection terminals : 1 x 16 mm2 ... 1 x 50 mm2
• Multiple conductor connection : 1
• Min. USA connection terminals : 6 AWG
• Max. USA connection terminals : 1/0 AWG
• Type of connection cable : Finely stranded, stranded
• Width : 180.000 mm
• Height : 211.000 mm
• Length : 407.000 mm
• Impact strength (IEC 60079) : 7.00 J
• Impact strength (IEC 62262) : IK10
• Colour code : blue
• Coding (clock hour position) : 9
• Lockable in : in 0- and I-position
• Series : SolConeX
• Detailed number of poles : 3 P + N + PE
• Weight: 8.200 kg
• Weight: 18.08 lb
