SY FLEXIBLE, VERIFLEX SY-JZ (YSLYSY) Control Cable V02 5x16.00mm? 300/500V
Tags:
APPLICATION Veriflex steel wire braided flexible connecting cables for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms.
THB0.00
Choose Quantity
Product Details
• Voltage Rating : 300/500V
• Test Voltage : 4kV
• Temperature Rating :
- Fixed: -40°C to +80°C
- Flexed: -5°C to +70°C
• Minimum Bending Radius :
- Fixed: 4 x overall diameter
- Flexed: 12.5 x overall diameter

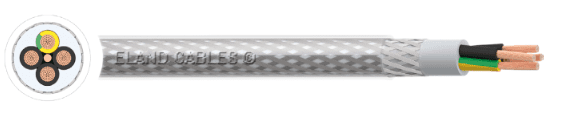

CONSTRUCTION :
• Conductor : Class 5 flexible plain copper wires
• Insulation : PVC (Polyvinyl Chloride)
• Inner Sheath : PVC (Polyvinyl Chloride)
• Armour : GSWB (Galvanised Steel Wire Braid)
• Sheath : PVC (Polyvinyl Chloride)
• Core Identification : Black with white number
• From 3 cores: Black with white number + Green/Yellow
• Colour-coded cores available upon request
• Sheath Colour : Transparent
