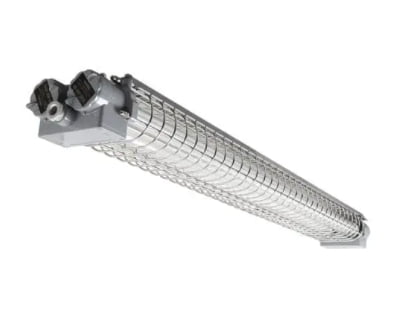

Tormin, BC5401 Series, Explosion proof LED Tube Light
Tags:
It can be widely used in petrochemical plants, oil platforms, oil pump housing, transit stations and other flammable and explosive places as fixed lighting.
THB0.00
Choose Quantity
Product Details
Characteristics
1. It is made using a special aluminum housing, suitable for long-term highly corrosive environment of offshore platforms, chlor-alkali, hydrogen sulfide, etc.
2. Derrick mounting fixture adopt high anti-corrosive aluminum and locking angle equipment, can be safely used in drilling platforms and high vibration environment.
3. The shell adopts high-tech surface spraying technology, wear-resistant, and anti-corrosion, waterproof and dustproof, suitable for various harsh environments.
4. Bracket, reflector, guard, and all exposed fasteners adopt 304 stainless steel (customizable 316), can effectively guarantee the strength and strong anti-corrosion performance of lamp.
5. Terminals are provided at both ends, can be directly wired in parallel, eliminating the junction box and installation costs.
6. A variety of installation as optional: ceiling, oil derrick, the side walls, curved rods, boom, etc.
Technical Specification :
• Rated power : 2*20W(T8 led tube) , 2*10W(T8 led tube)
• Input voltage range : 90~264VAC
• Input frequency : 50Hz/ 60Hz
• Light source : LED
• Light efficiency flux : 3900lm , > 1800lm
• CRI : >Ra 70
• Service life : 50,000h
• CCT : 5000K
• Screw Thread : G3/4", NPT3/4", M25*1.5
• Terminals : Multi-core wire:(LESS-THAN OR EQUAL TO) 2.5mm2
: Single-core wire:(LESS-THAN OR EQUAL TO) 4mm2
• Dimension : 1390* 180* 110mm , 780* 180* 110mm
• Net weight : 11 Kg , 7.5Kg
