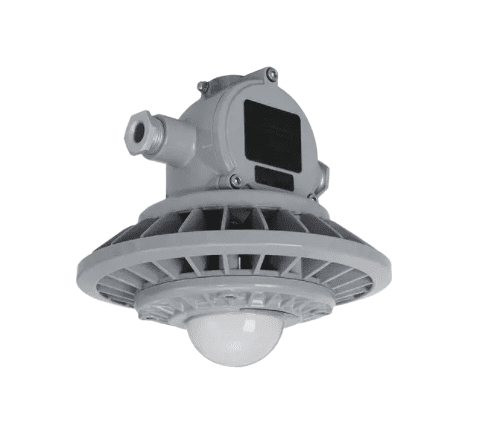

Tormin, DGS20/127L(C), LED Explosion-proof Mining Tunnel light
Tags:
THB0.00
Choose Quantity
Product Details
Characteristics :
1. It is made using a special aluminum housing, all exposed fasteners adopt 304 stainless steel. Using high-tech anti-corrosion surface treatment technology, suitable for long-term highly corrosive environment under coal mine.
2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
3. Optoelectronic integrated technology no dark spot, no ghosting, the average light efficiency of whole lamp can reach to 100 lm/W, energy-saving is 60% more than Metal Halide Lamp.
4. Universal AC-DC, power factor above 0.98.
5. Quick replay light source without welding.
6. Independent wiring chamber, safe and easy installation and maintenance.
7. Designed for Roadway Layout with ring mounted which can be connected in parallel.
Main Specification :
• Input voltage range : 90~264 VAC
• Input frequency : 50Hz/ 60Hz
• Light source : LED
• Service life : 50000h
• CRI : Ra 70(80 Optional)
• CCT : 5000K (3000K/4000K Optional)
• Cable entry : G3/4"
• Leading-in cable diameter : (Phi)9mm~(Phi)14mm
• Dimension : (Phi)230* 218mm(Ring Mounting)
: 218* 230* 268mm(Bracket)
• Net weight : 2.7Kg(Ring Mounting)
: 3.2Kg(Bracket)
