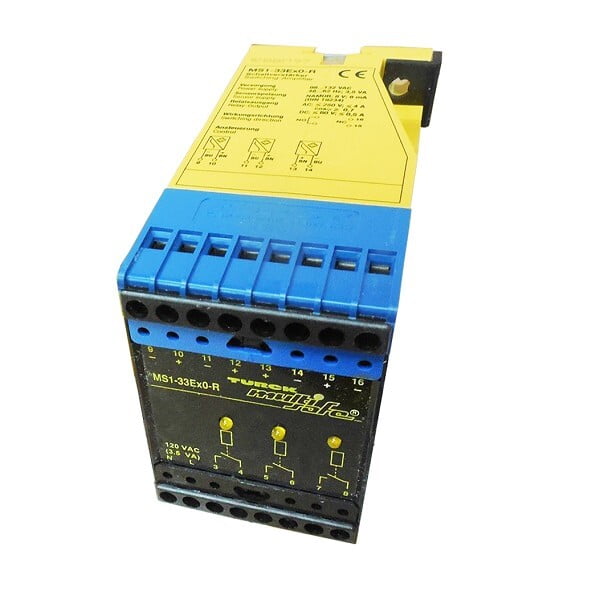

Turck, MS1-33EX0-R, Isolating switching amplifier
Tags:
• Isolating switching amplifier
• 3-channel
• Type : MS1-33EX0-R
• Intrinsically safe input circuits Ex ia
• Application area acc. to ATEX: II (1) G; II(1) D and I (M1)
THB0.00
Choose Quantity
Product Details
• 3 relay outputs with 1 NO contact each
• Universal operating voltage (20 250VAC/ 20 125VDC)
• Programmable outputs (NO/NC mode)
• Galvanic isolation of input circuits, outputcircuits and supply voltage
• Ident-No: 5313102
• Nominal voltage : Universal voltage supply unit
• Operating voltage: 20 250 VAC
• Frequency: 40 70 Hz
• Operating voltage range 20 125 VDC
• Power consumption : 3 W
• NAMUR EN-60947-5-6
• No-load voltage :8 VDC
• Short-circuit current: 4.5 mA
• Input resistance : 1 k
• Cable resistance: 50
• Switch-on threshold: 1.55 mA
• Switch-off threshold: 1.75 mA
• Output circuits (digital) 3 x relays (NO)
• Relay switching voltage: 250 VAC/120 VDC
• Switching current per output: 4 A
• Switching capacity per output : 1000 VA/60 W
• Switching frequency : 10 Hz
• Contact quality AgNi, 3µ Au
• Galvanic separation
• Test voltage: 2.5 kV
• Ex approval acc. to conformity certificate: DMT 01 ATEX E 119
• Application area: II (1) GD; I (M1)
• Protection type: [Ex ia Ga] IIC; [Ex ia Da] IIIC; [Ex ia Ma] I
• Max.output voltage Uo: 11 V
• Max. output current Io: 55 mA
• Max. output power Po: 150 mW
• Rated voltage:250 V
• Characteristic:linear
• Indication
• Switching state : yellow
• Mechanical Data
• Protection class: IP20
• Ambient temperature: -25 +60 °C
• Dimensions: 75 x 50 x 110 mm
• Weight: 266 g
• Mounting instruction: For mounting on DIN rail or mounting panel
• Housing material: Polycarbonate/ABS
• Electrical connection: 2 x 8-pole removable terminal blocks, reverse polarity protected, screw connection
• Terminal cross-section:1 x 2.5 mm2/ 2 x 1.5 mm2
• Shipping Weight: 1.3 Kg
