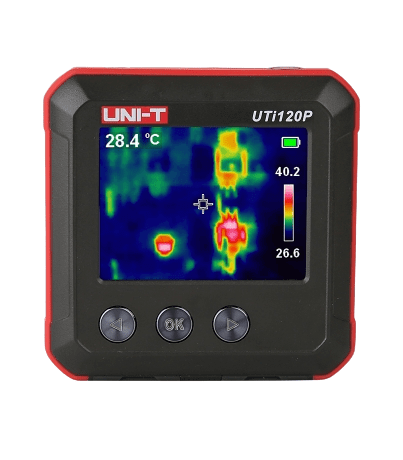

UNI-T, UTi120P, Thermal Imager
Tags:
UNI-T Portable Thermal Imagers follow a compact design philosophy. This series can be easily put in the pocket, which is very portable for users.
THB1.00
Choose Quantity
Product Details
Features :
• Infrared resolution: 80x60 to 120x90
• Temperature measurement range: -10?~400? / -20?~400?
• Auto tracking for Lo/Hi temperature
• Digital camera and WiFi function on selected model
• Very compact design friendly for users
| Specifications | UTi120P |
| Certification | CE, RoHS |
| IR resolution | 120 x 90 pixels |
| Field of view (FOV) | 51° x 38° |
| Thermal sensitivity (NETD) | ＜60mk |
| Temperature range | -20~400℃ |
| Spatial resolution (IFOV) | 7.3mrad |
| Frame rate | 25Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Palettes | 3 |
| Emissivity | Adjustable (0.01-1.00) |
| Focus | Focus free |
| Display modes | Thermal |
| Display | 2.4”TFT LCD |
| Auto capture of Hi/Lo temperature | √ |
| Measurement modes | Point, area |
| PC analysis software | √ |
| Drop proof | 1m |
| General Characteristics | |
| Power | Li-ion battery (3.7V 1300mAh); |
| Product net weight | 125g |
| Product size | 76mm x 76 mm x 22mm |
| Standard accessories | Carrying bag, micro USB cable, micro SD card, English manual |
| Standard individual packing | Blister, gift box |
| Standard quantity per carton | 5pcs |
| Standard carton measurement | 390mm x 130mm x 140mm |
| Standard carton gross weight | 2.8kg |
