Varec, Series 2500, AUTOMATIC TANK GAUGE
Tags:

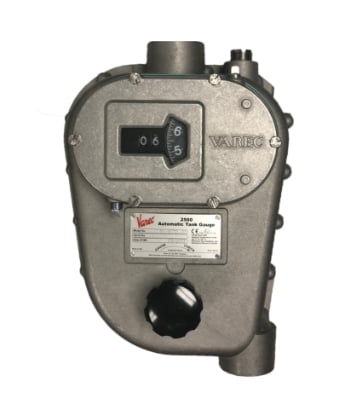

The 2500 Automatic Tank Gauge (ATG) is a mechanically operated, float & tape instrument designed to provide continuous liquid level measurement in bulk storage applications.
THB0.00
Choose Quantity
Product Details
SPECIFICATIONS
SPECIFICATIONS
• Product Gravity Range
0.7 to 1.9 g/cc (700‐1900 kg/m³) specific gravity
• Service Rating
Aluminum — Atmospheric to 2.5 PSI (17.2 kPa) gauge pressure
Cast Iron — Atmospheric to 10 PSI (68.95 kPa) gauge pressure
• Measuring Range
Standard 0 – 60 ft (18 m)
Extended 0 – 96 ft (29 m) Fixed roof tanks only (requires extended range kit)
• Ambient Temperature Range
‐40 °F to +185 °F (‐40 °C to +85 °C)
• Approvals
ATEX II 1 G Certificate Number: FM06ATEX0009
IP66 (optional)
