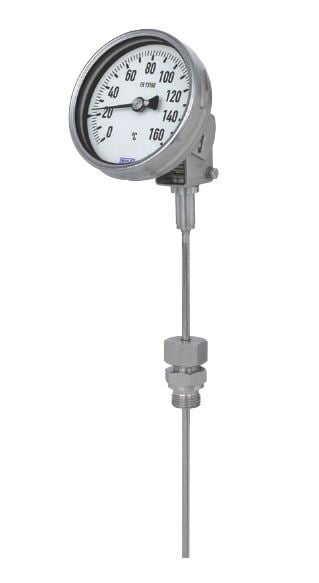

WIKA, S5551, DIA 160mm Temp Gauge
Tags:
Bimetal thermometer, stainless steel version
Specifications according to data sheet : TM 55.01 / TV25.01
THB0.00
Choose Quantity
Product Details
• Case : stainless steel
• Stem material : stainless steel
• Model : S 5551, nominal size 160, adjustable stem and dial
• Accuracy class : class 1 per EN 13190
• Connection design : 4, compression fitting, sliding on stem
• Unit : °C
• Scale range : -20 °C ... +120 °C
• Process connection : 1/2 NPT
• Stem diameter : 6 mm
• Insertion length L1 : 300 mm
• Window : laminated safety glass
• Damping : liquid damping
• Case : Stainless steel
• Version : standard
• Stem material : stainless steel
• Ingress protection : IP 65
• Permissible ambient temperature : -40 ... +70 °C
• Manufacturer logo : *WIKA*
• serialnumber on dial : Serial number *...*
• Test-Report
• Test-Report : Calibration Test Report
• Language : English and German
• Type of test : 3 test points: Begin/middle/end of range
